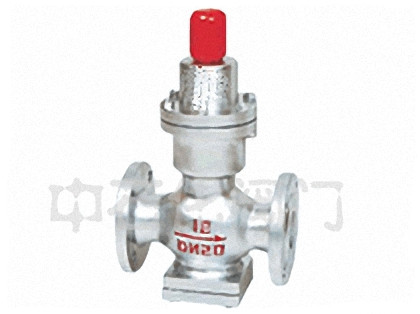

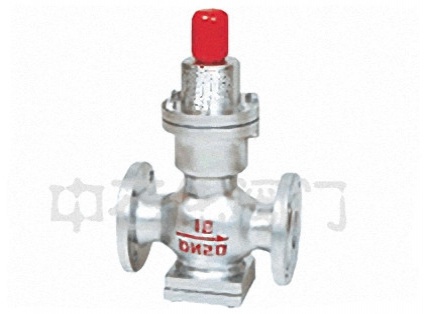

Home > Products > Pressure reducing valve > Bellows pressure relief valveT44H

Description Material Performance Product Size Specifications

This series of pressure reducing valve is a direct acting bellows spring relief valve. Mainly consists of bellows, spring, valve seat, valve and other parts of the composition, the use of bellows sensing valve pressure valve, change and control valve opening to achieve the function of pressure relief. By adjusting the adjusting bolt to set the outlet pressure. The valve product pressure regulating and pressure stabilizing action is sensitive and balanced, and is suitable for the use of the pipeline of the gas and the liquid medium.
Note: parameters are for reference only, or are not full. Valve can be used in accordance with the requirements of different pressure, material, diameter, drive, etc.. Specific please contact or online advisory contact.

Part name	Part material
Valve body, valve cover	WCB
Bottom cover	WCB
Valve seat, valve flap	2Cr13
corrugated pipe	1Cr18N9Ti
Corrugated pipe upper gasket	2Cr13
Corrugated pipe bottom pad	2Cr13
Number direction	2Cr13
Main valve spring	50CrVA
Regulating spring	60S12Mn

Nominal pressure（MPa）	0.6	1.0	1.6
Shell test pressure（MPa）	0.9	1.5	2.4
Seal test pressure（MPa）	0.6	1.0	1.6
pressure（MPa）	0.6	1.0	1.6
Outlet pressure range（MPa）	0.05-0.4	0.1-0.8	0.1-1.0
Pressure characteristic deviation（MPa）△P2P	GB12244-1989
Flow characteristic deviation（MPa）△P2G	GB12244-1989
difference（MPa）	0.1	0.15	0.15
Seepage quantity	GB12245-1989

DN	15	20	25	32	40	50	65	80	100
Cv	1	2.5	4	6.5	9	16	25	36	64

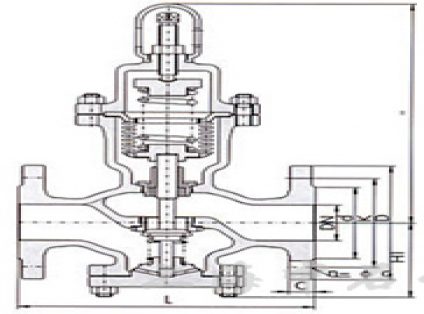

Nominal diameter DN	Outline dimension				Connection dimension
	L		H	H1	PN1.6MPa					PN1.6MPa					PN1.6MPa
	0.6/1.0MPa	1.6MPa			D	K	n-Φ	d	C	D	K	n-Φ	d	C	D	K	n-Φ	d	C
15	140	140	290	90	80	55	4-12	40	12	95	65	4-14	45	12	95	65	4-14	45	14
20	140	140	295	98	90	65	4-12	50	12	105	75	4-14	55	14	105	75	4-14	55	14
25	160	160	295	110	100	75	4-12	60	14	115	85	4-14	65	14	115	85	4-14	65	14
32	1080	180	295	110	120	90	4-14	70	14	135	100	4-18	78	16	135	100	4-18	78	16
40	200	200	325	125	130	100	4-14	80	14	145	110	4-18	85	16	145	110	4-18	85	16
50	230	230	325	125	150	110	4-14	90	14	160	125	4-18	100	16	160	125	4-18	100	16
65	280		325	130	160	130	4-14	110	14	180	145	4-18	120	18	180	145	4-18	120	18
80	310		380	160	185	150	4-18	125	16	195	160	4-18	135	18	195	160	8-18	135	20
100	350		380	170	205	170	4-18	145	16	215	180	8-18	155	20	215	180	8-18	155	20
