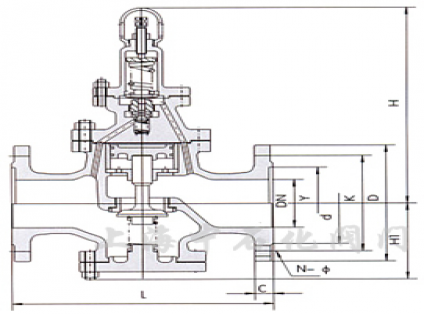

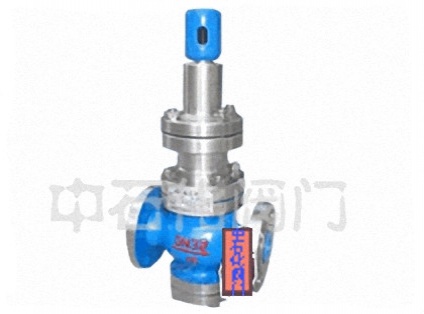

This series of pressure reducing valve belongs to the pilot piston type pressure reducing valve. By the main valve and pilot valve two parts. The main valve is composed of valve seat, valve disc, piston, cylinder liner, spring and other parts. The pilot valve is mainly composed of valve seat, valve, diaphragm, spring, adjusting spring and so on. By adjusting the spring pressure to set the outlet pressure, the use of the diaphragm sensing outlet pressure changes, through the pilot valve opening and closing the main valve throttle position over the flow area of the size, to achieve the function of pressure relief. This product is mainly used in the steam pipe, the role of ultra pressure relief.
Note: parameters are for reference only, or are not full. Valve can be used in accordance with the requirements of different pressure, material, diameter, drive, etc.. Specific please contact or online advisory contact.
