Product introduction:

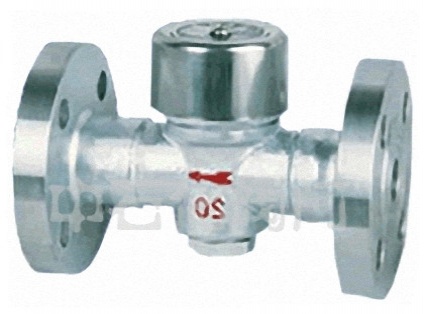

First, the product [thermal power steam trap] details:
Item name: Y / Beijing thermal steam trap
Product features: simple structure, low price, reliable action. Leakage rate <3%, not affected by pressure fluctuations, large pressure range. Because the sealing surface stainless steel, the service life is higher than the domestic similar product.
Two, the main features:
Simple structure, low price, reliable action. Leakage rate <3%, not affected by pressure fluctuations, large pressure range. Because the sealing surface stainless steel, the service life is higher than the domestic similar product.

Order note:
If there is no selected model, please provide detailed parameters, such as medium, temperature, pressure, caliber, material and so on. Our technicians will select for you
Two. Provided that the selected model is available according to the selected model
Three, non standard products need to provide samples or confirmed by drawings
Note: the information is for reference only, or incomplete, so please feel sorry for the inconvenience. The company can choose according to different requirements and parameters. The company has a variety of sizes, pressure, different materials, connections, drive mode, to meet the needs of different traps. Please contact 021-6651 8677 or consult online.

valve body	Forged steel
Valve cap	Stainless steel
Valve cover	Forged steel
Valve	Stainless steel
Sealing surface of valve body	Stainless steel

No Information

三、Thermal power steam traps main appearance and connection dimensions：

product Model	DN	Thread connection				Socket welding joint					weight （kg）	-									weight （kg）
		RC	L	H	H1	L	H	H1	D	t		L	H	H1	D	K	d	c	f	N-Φ
		（mm）				（mm）						（mm）
CS19H-16/25C CS49H-16/25C CS69H-16/25C	15	1/2	75	57	35	75	57	35	23	7	1.23	150	57	35	95	65	45	14	2	4-14	3.13
	20	3/4	85	60	43	85	60	43	28	7	1.32	150	60	43	105	75	55	14	2	4-14	3.70
	25	1	95	68	50	95	68	50	33	10	1.67	160	68	50	115	85	65	14	2	4-14	4.78
	32	11/4	105	90	80	105	90	80	42	12	6.7	200	90	80	135	100	78	16	2	4-18	10.8
	40	11/2	110	90	80	110	90	80	52	12	6.9	230	90	80	145	110	85	16	2	4-18	10.84
	50	2	170	95	87	130	95	87	62	12	7.7	230	95	87	160	125	100	16	3	4-18	13.62
CS19H-40 CS49H-40 CS69H-40	15	1/2	75	61	41	175	61	41	23	9	1.23	150	61	41	95	65	45	16	2	4-14	3.13
	20	3/4	85	64	45	85	64	45	28	12	1.32	150	64	45	105	75	55	16	2	4-14	3.70
	25	1	95	68	45	95	68	45	33	15	1.67	160	68	45	115	85	65	16	2	4-14	4.78
	32	11/4	105	81	56	105	81	56	40	15	6.7	200	81	56	135	100	78	18	2	4-18	11.7
	40	11/2	110	81	56	110	81	56	50	15	6.82	230	81	56	145	110	85	18	3	4-18	11.82
	50	2	120	89	64	120	89	64	60	20	7.62	230	89	64	160	125	100	20	3	4-18	14.14

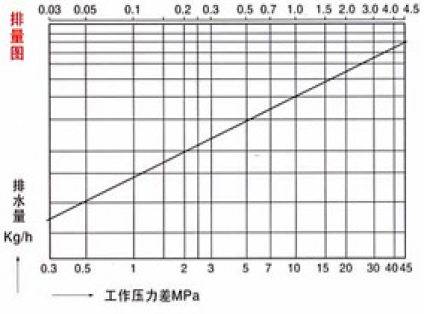

Product model	DN	Working pressure difference（MPa）
		0.05	0.15	0.4	0.6	1.0	1.6	2.5
CS19H-16C CS49H-16C	15.20.25	150	280	400	475	600	800	-
	32.40.50	550	650	900	1200	1700	2100	-
CS19H-25 CS49H-25 CS69H-25	15.20.25	1717	1828	2536	2701	3202	3581	-
	32.40	56	-	119	-	321	470	534
	50	1800	2050	2600	3000	3500	4300	5000
CS19H-40 CS49H-40 CS69H-40	15.20.25	56	-	119	-	321	470	534
	32.40.50	1800	2050	2600	3000	3500	4300	5000
