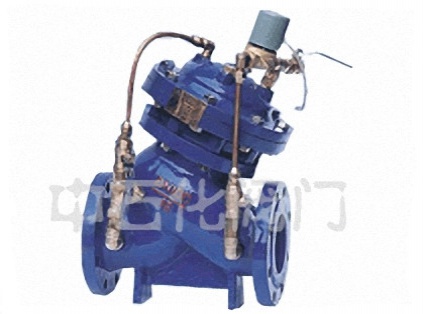

J145X diaphragm type electric remote control valve, diaphragm type remote control valve, electric remote control valve installed in various types of water system of the pipeline, according to electrical signals or manual operation, so that the valve open or close. Accurate and fast control response. Closing speed can be adjusted, the valve closed smoothly and will not produce pressure fluctuations. Using three directional solenoid valve, maintenance is simple.
Note: parameters are for reference only, or are not full. Valve can be used in accordance with the requirements of different pressure, material, diameter, drive, etc.. Specific please contact or online advisory contact.

No Information

No Information

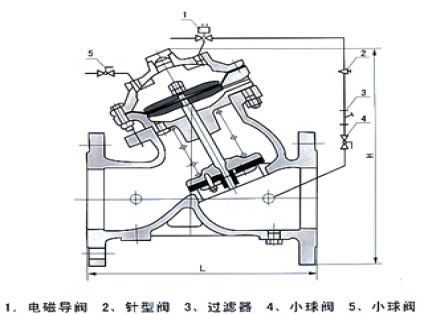

DN	50	65	80	100	125	150	200	250	300	350	400	450	500	600
L	205	216	250	320	365	415	500	605	698	787	914	978	978	1150
H	320	367	400	452	522	592	696	810	943	1200	1230	1230	1270
