Product details [butt type metal seal butterfly valve.：

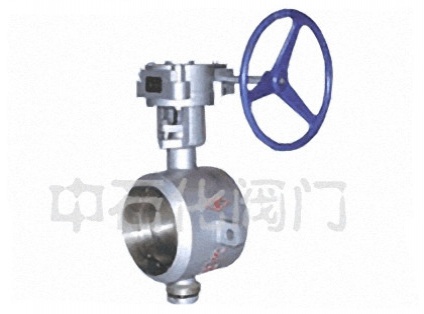

Product Name: butt welding metal hard seal butterfly valve

Product features: use and characteristics of the butterfly valve is suitable for high temperature, high pressure, fire, insulation and other piping for opening and closing or regulating medium. Its main features are as follows: 1, compact structure, small size, light weight, flexible operation, easy to use. 2, the use of three-dimensional eccentric elastic or multi-level hard seal structure, the sealing performance of reliable zero leakage; 3, this valve without flange, to pipe and protect PA bring great convenience and beauty. 4, with high temperature, high pressure corrosion resistance, wear resistance and other characteristics. Drive type: worm gear, pneumatic drive, electric drive butt type metal seal butterfly valve, welded butterfly valve, metal seal butterfly valve。

Adopt standard：

Weld size：GB12224; ANSI B16.25; DIN2559
Structure length：GB/T12221-1989; API609
Pressure test：GB/T13927-1992; API598

Part name	Material Science
valve body	Cast steel, stainless steel, chrome molybdenum steel and special materials
Disc	Cast steel, alloy steel (chrome plated), stainless steel, chrome molybdenum steel and special materials
Seal ring	Stainless steel, wear resistant material
The stem	2Cr13、1Cr13Stainless steel, chrome molybdenum steel
filler	Flexible graphite

No Information

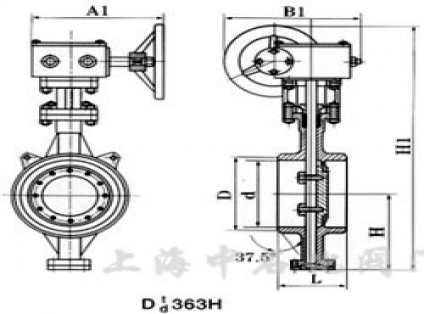

二、Butt welding metal hard seal butterfly valveDtd363H/W-(C.I.P.R)Butt type hard seal butterfly valve series dimensions：

Nominal pressure
Path		Outline dimension (reference value)							Reference weight(kg)
millimeter	inch	L	D	d	H	H1	A	B	Reference weight(kg)
600	24	390	636	602	499	1280	570	660	450
700	28	430	726	692	566	1480	750	550	660
800	32	470	826	792	632	1608	750	550	780
900	36	510	926	892	693	1857	750	550	820
1000	40	550	1028	992	757	2038	900	750	1460
1200	48	630	1228	1192	851	2237	1000	925	1590
1400	56	710	1428	1392	876	2411	1000	925	2185
1600	64	790	1628	1592	1095	2756	1000	925	3210
1800	72	870	1828	1792	1214	3093	1100	980	4090
2000	80	950	2028	1992	1332	3355	1100	980	5610

Nominal pressure
Path		Outline dimension (reference value)							Reference weight(kg)
millimeter	inch	L	D	d	H	H1	A	B	Reference weight(kg)
600	24	390	636	602	499	1280	570	660	465
700	28	430	726	692	566	1480	750	550	680
800	32	470	826	792	632	1608	750	550	810
900	36	510	926	892	693	1857	750	550	860
1000	40	550	1028	992	757	2038	900	750	1625
1200	48	630	1228	1192	851	2237	1000	925	1770
1400	56	710	1428	1392	876	2411	1000	925	2425
1600	64	790	1628	1592	1095	2756	1000	925	3560
1800	72	870	1828	1792	1214	3093	1100	980	4545
2000	80	950	2028	1992	1332	3355	1100	980	6230

Nominal pressure
Path		Outline dimension (reference value)							Reference weight(kg)
millimeter	inch	L	D	d	H	H1	A	B	Reference weight(kg)
80	3	180	90	78	90	356	180	200	27
100	4	190	110	96	100	375	180	200	34
125	5	200	135	121	113	401	180	200	41
150	6	210	161	146	130	450	270	280	43
200	8	230	222	202	205	545	400	425	81
250	10	250	278	254	235	630	400	425	102
300	12	270	330	303	275	715	450	560	132
350	14	290	382	351	309	817	450	560	164
400	16	310	432	398	346	923	535	580	193
450	18	330	484	450	392	1059	535	580	238
500	20	350	535	501	427	1126	535	580	302

Nominal pressure
Path		Outline dimension (reference value)							Reference weight(kg)
millimeter	inch	L	D	d	H	H1	A	B	Reference weight(kg)
600	24	390	636	602	509	1369	570	660	457
700	28	430	726	692	572	1492	750	550	810
800	32	470	826	792	638	1622	750	550	1093
900	36	510	926	892	700	1924	750	550	1410
1000	40	550	1028	992	765	2054	900	750	1870
1200	48	630	1228	1192	860	2259	1000	925	2082
1400	56	710	1428	1392	986	2610	1000	925	2850
1600	64	790	1628	1592	1106	2856	1000	925	4235
1800	72	870	1828	1792	1226	3121	1100	980	5346
2000	80	950	2028	1992 ,	1345	3385	1100	980	7328

Nominal pressure
Path		Shape 792 dimension (reference value)							Reference weight(kg)
millimeter	inch	L	D	d	H	H1	A	B	Reference weight(kg)
80	3	180	90	78	90	356	180	200	38
100	4	190	110	96	106	387	180	200	40
125	5	200	135	121	122	413	180	200	60
150	6	210	161	146	136	459	270	280	65
200	8	230	222	202	215	585	400	425	85
250	10	250	278	254	247	649	400	425	135
300	12	270	330	303	288	771	450	560	175
350	14	290	382	351	333	929	450	560	195
400	16	310	432	398	359	993	535	580	295
450	18	330	484	450	405	1053	535	580	350
500	20	350	535	501	444	1245	535	580	510
600	24	390	636	602	521	1750	570	660	625
700	28	430	726	692	586	1519	750	550	925
800	32	470	826	792	659	1659	750	550	1260
900	36	510	926	892	720	1829	750	550	1790
1000	40	550	1028	992	780	1949	900	750	1940
1200	48	630	1228	1192	889	2243	1000	925	2810
1400	56	710	1428	1392	1000	2462	1000	925	3500

Nominal pressure
Path		Outline dimension (reference value)							Reference weight(kg)
millimeter	inch	L	D	d	H	H1	A	B	Reference weight(kg)
80	3	180	90	78	108	430	180	200	39
100	4	190	110	96	108	392	180	200	50
125	5	200	135	120	120	414	180	200	75
150	6	210	161	145	135	494	270	280	100
200	8	230	222	200	202	578	400	425	135
250	10	250	278	252	235	673	400	425	190
300	12	270	330	301	280	793	450	560	240
350	14	290	382	351	315	921	450	560	320
400	16	310	432	398	355	1021	450	580	450
450	18	330	484	448	370	1143	535	580	500
500	20	350	535	495	420	1192	535	580	560
600	24	390	636	595	490	1327	570	660	720

Nominal diameter	DN(mm)	50~1200
Nominal pressure	PN(MPa)	0.6	1.0	1.6	2.5	4.0
Test pressure Ps(MPa)	strength test	0.9	1.5	2.4	3.75	6.0
	Seal test	0.66	1.1	1.76	2.75	4.4
	Air tight test	0.6	0.6	0.6	0.6	0.6
Applicable medium	Water, steam, oil, acid corrosion, etc.。
Applicable temperature	carbon steel：-29℃~425℃ Stainless steel：-40℃~600℃
