Home > Products > Butterfly valve > Rubber lined butterfly valve

Description Material Performance Product Size Specifications

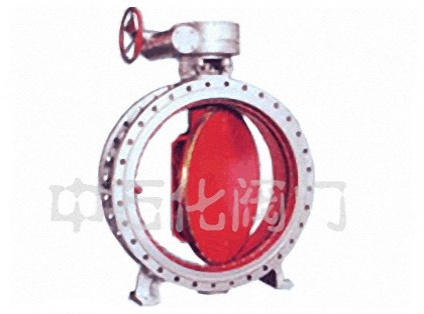

Product [network pipe lining rubber butterfly] detailed information：

Product model：D941X/J

Product Name: pipe lined rubber butterfly valve

Product features: Electric flange type soft sealing butterfly valve, electric soft sealing butterfly valve, flange type soft sealing butterfly valve

No Information

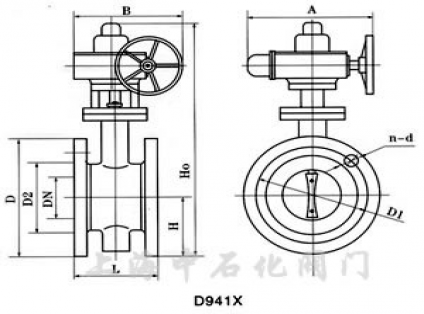

、Pipe network rubber lined butterfly valveD941X/J -6/10/16 Q.C.P.RSeries connection size：

Nominal diameter		Structure length (standard value)	Dimensions (reference values)				Connection dimension (standard value)												Reference weight （kg）
Nominal diameter		Structure length (standard value)	Dimensions (reference values)				0.6MPa				1.0MPa				1.6MPa
millimeter	inch	L	H	H0	A	B	D	D1	D2	n-d	D	D1	D2	n-d	D	D1	D2	n-d
50	2	108	82.5	443	125	125	140	110	88	4-14	165	125	99	4-18	165	125	99	4-18	51
65	2 1/2	112	92.5	463	125	125	160	130	108	4-14	185	145	118	4-18	185	145	118	4-18	62
80	3	114	100	483	125	125	190	150	124	4-18	200	160	132	8-18	200	160	132	8-18	73.5
100	4	127	110	498	325	125	210	170	144	4-18	220	180	156	8-18	220	180	156	8-18	87
125	5	140	125	682	325	245	240	200	174	8-18	250	210	184	8-18	250	210	184	8-18	98
150	6	140	142.5	736	325	245	265	225	199	8-18	285	240	211	8-22	285	240	211	8-22	102
200	8	152	170	800	325	245	320	280	254	8-18	340	295	266	8-22	340	295	266	12-22	150
250	10	165	197.5	895	363	313	375	335	309	12-18	395	350	319	12-22	405	355	319	12-26	170
300	12	178	222.5	956	363	313	440	395	363	12-22	445	400	370	12-22	460	410	370	12-26	220
350	14	190	252.5	1029	363	313	490	445	413	12-22	505	460	429	16-22	520	470	429	16-26	350
400	16	216	282.5	1103	363	313	540	495	463	16-22	565	515	480	16-26	580	525	480	16-30	430
450	18	222	307.5	1186	456	439	595	550	518	16-22	615	565	530	20-26	640	585	548	20-30	550
500	20	229	335	1280	546	431	645	600	568	20-22	670	620	582	20-26	715	650	609	20-33	580
600	24	267	390	1321	546	556	755	705	667	20-26	780	725	682	20-30	840	770	720	20-36	850
700	28	430	447.5	1431	546	556	860	810	772	24-26	895	840	794	24-30	910	840	794	24-36	950
800	32	470	507.5	1542	546	556	975	920	878	24-30	1015	950	901	24-33	1025	950	901	24-39	1150
900	36	510	557.5	1800	617	706	1075	1020	978	24-30	1115	1050	1001	28-33	1125	1050	1001	28-39	1750
1000	40	550	615	2363	632	706	1175	1120	1078	28-30	1230	1160	1112	28-36	1255	1170	1112	28-42	2100
1200	48	630	727.5	2583	632	706	1405	1340	1295	32-33	1455	1380	1328	32-39	1485	1390	1328	32-48	2580
1400	56	710	837.5	2710	790	1338	1630	1560	1510	36-36	1675	1590	1530	36-42	1685	1590	1530	36-48	2990
1600	64	790	957.5	2845	868	1476	1830	1760	1710	40-36	1915	1820	1750	40-48	1930	1820	1750	40-56	3475
1800	72	870	1057.5	3060	868	1476	2045	1970	1918	44-39	2115	2020	1950	44-48	2130	2020	1950	44-56	4058
2000	80	950	1162.5	3350	965	1600	2265	2180	2125	48-42	2325	2230	2150	48-48	2345	2230	2150	48-62	4680

Note: if the user needs the valve plate lining rubber and other special requirements, please spec
