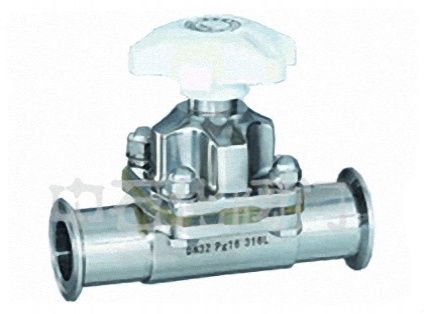

Sanitary diaphragm valve is  in the field of bio pharmaceuticals, a variety of media is the special requirements of production, its smooth no meet, no dead angle, assurance system. So that it is widely used in the field of bio pharmaceutical and injection of water and other highly demanding system, is designed for GMP requirements.
Note: parameters are for reference only, or are not full. Valve can be used in accordance with the requirements of different pressure, material, diameter, drive, etc.. Specific please contact or online advisory contact.

No Information

No Information

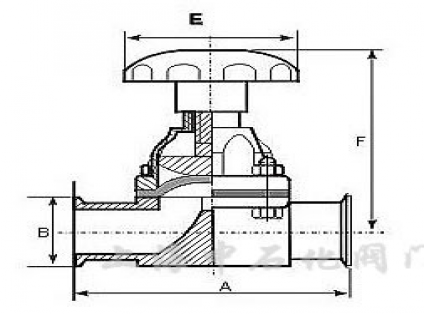

Specifications （DN）	A	B	F
15	108	34	88/99
20	118	50.5	91/102
25	127	50.5	110/123
32	146	50.5	129/138
40	159	50.5	139/159
50	191	64	159/186
